Automatic Petri Dish Filling Machine 6000BPH for Microbiology Labs

Detalhes do produto

Lugar de origem: Jiangsu, China

Marca: PERWIN

Termos de pagamento e envio

Quantidade de ordem mínima: 4

Preço: $88,000

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          automatic petri dish filling machine, petri dish filler for microbiology labs, 6000BPH petri dish filling machine


Capacidade de máquinas:	1200BPH	Tensão:	CA trifásica 380V
Dimensão:	750035001400mm	Peso:	2000 kg
Intervalo de enchimento:	4 ~ 70ml	Precisão de preenchimento:	±1~3%
Velocidade de enchimento:	6000BPH	Método de enchimento:	3 conjuntos de bomba peristáltica
Tempo de resfriamento:	3,5 ~ 5min	Estaca de pratos:	5 a 10 pratos por pilha
Poder:	380V 50Hz, cerca de 9 kW	Ar comprimido:	0,4~0,8MPa
Preencher a temperatura da agulha:	40 ~ 45 ° C.	Velocidade de produção:	≧ 3200pcs/min
Componentes principais:	motor, vaso de pressão, bomba, plc, engrenagem, rolamento, caixa de engrenagens, motor, HMI

Capacidade de máquinas:	1200BPH
Tensão:	CA trifásica 380V
Dimensão:	750035001400mm
Peso:	2000 kg
Intervalo de enchimento:	4 ~ 70ml
Precisão de preenchimento:	±1~3%
Velocidade de enchimento:	6000BPH
Método de enchimento:	3 conjuntos de bomba peristáltica
Tempo de resfriamento:	3,5 ~ 5min
Estaca de pratos:	5 a 10 pratos por pilha
Poder:	380V 50Hz, cerca de 9 kW
Ar comprimido:	0,4~0,8MPa
Preencher a temperatura da agulha:	40 ~ 45 ° C.
Velocidade de produção:	≧ 3200pcs/min
Componentes principais:	motor, vaso de pressão, bomba, plc, engrenagem, rolamento, caixa de engrenagens, motor, HMI

Descrição

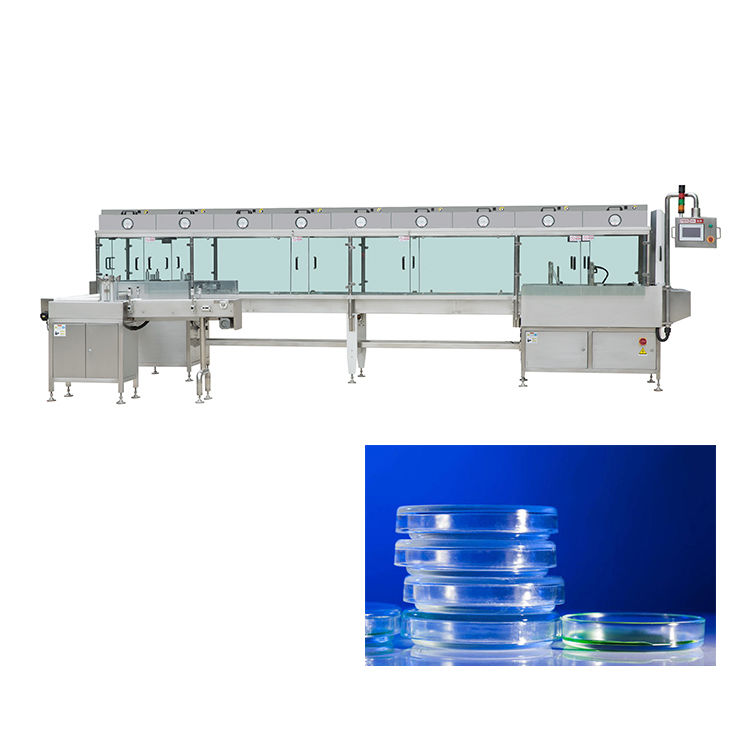

Automatic Petri Dish Filling Machine 6000BPH for Microbiology Labs

55mm 60ml 90mm 150mm and Contact RODAC Plates Petri Dish Filling Machine

Product Overview

PERWIN's new generation of aseptic petri dish filling line can be designed with different functional modules according to the customer's capacity requirements, plant conditions and different industries where the culture medium is applied.

Key Features

Compact design
Intelligent operation
Fully automated process
HEPA protected filling area
Easy to operate
English HMI interface

Technical Specifications

Item	Description
Product specifications	90mm mono and double area plates and 140mm and 55mm plates
Filling volume	4ml~70ml
Filling accuracy	±1~3%
Cooling time	3.5~5min, customer adjustable
Production speed	≥3200pcs/min (for 90mm dish with 5min cooling time)
Filling method	6 sets of peristaltic pumps, each with independent stepping system
Sheep blood adding system	Includes peristaltic pump, blood bag storage rack, and exclusive FFU area
Changeover parts	Equipped for three other specifications (4-6 lanes)
Filling needle insulation	Prevents liquid cooling and solidification (40-45°C)
FFU	11 sets covering entire process, including sheep blood station
Dish stack	5-10 dishes per stack (customer adjustable)
Power	380V 50Hz, ~9 KW
Control method	PLC intelligent linkage with touch screen control
Compressed air	0.4~0.8Mpa

Product Configuration

Successful Projects

Product Attributes

Machinery capacity

1200BPH

Application

Microbiology labs in hospital

Packaging type

Petri dish

Packaging material

Plastic

Automatic grade

Automatic

Driven type

Electric

Voltage

AC Three-Phase 380V

Dimension (l*w*h)

7500*3500*1400mm

Warranty

1 Year

Filling material

Agar culture media, sheep blood

Filling accuracy

±1~3%

Core components

Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, HMI

Filling range

4~70ml

Filling speed

6000bph

Weight

2000 KG

Frequently Asked Questions

Product Advantages

Compared to Chinese counterparts: Stronger R&D team; complete after-sales service system; stronger customization ability.

Compared with European and American counterparts: Shorter delivery time; Lower prices for products with the same configuration and output; Higher automation and intelligence at the same price; Lower after-sale maintenance costs.

After-Sales Service

Free spare parts for the first year (except for intentional damage). Online support for machine installation, operation and maintenance. Engineer overseas on-site service. Maintenance reminder service every 3 months. 24/7 after-sales online service. Complete documentation for IQ, OQ, PQ, DQ etc.

Communication Advantage

English operation interface and documentation. English communication for all services. After-sales service available across time zones with 24-hour support.

Successful Cases

Long-term cooperation with Roche. Based on successful initial cooperation, one customer purchased 12 production lines in a follow-up order.

Company Belief

Quality makes future.
